Features and uses:
※ The resistance strain gauge is an integrated product consisting of a sensing element and an integrated circuit; it has high precision and stable and reliable performance.
* Outputs forward and reverse torque signals;
* Both ends are keyed connections;
※ Higher speeds up to 1800 rpm;
Features and uses:
※ The resistance strain gauge is an integrated product consisting of a sensing element and an integrated circuit; it has high precision and stable and reliable performance.
* Outputs forward and reverse torque signals;
* Both ends are keyed connections;
※ Higher speeds can reach 1800 rpm;
Resistance strain is an integrated product composed of sensitive components and integrated circuits;There is no wear of the collector ring, etc., it can run at high speed for a long time, and output positive and negative torque signals;Both ends are connected by key;
definition: High precision Stable performance Maximum measuring speed 100 rpm
Product description:
Can measure the static torque and also the rotation torque;
Detection of high precision, good stability, strong anti-interference;
Without repeated zero calibration and can be measured continuously positive and negative torque;
No wear parts such as collecting ring, can run at high speed for a long time;
Strain Elastomer strength, can withstand 150% loading;
Strong anti-interference, can be anywhere, any direction of installation;
Output signal: Pulse, 4-20mA

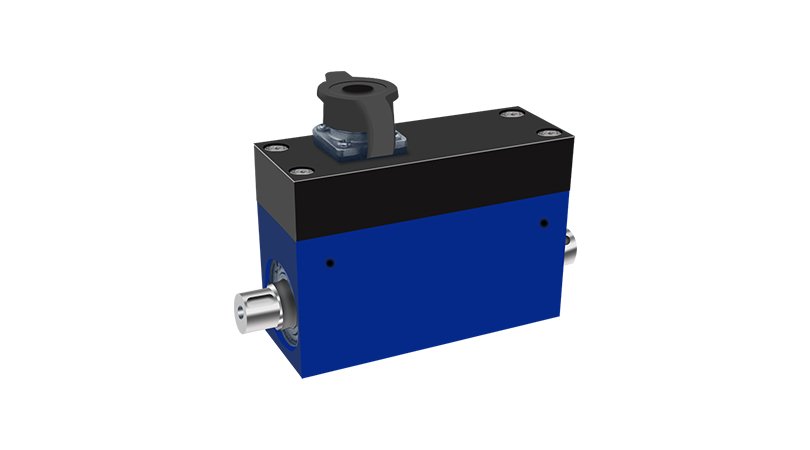

Dynamic Rotary Torque Sensor
Capacity: 5,10,20,50,100,200,500N.m
Category: Dynamic Rotary Torque Sensor
Resistance strain is an integrated product composed of sensitive components and integrated circuits;There is no wear of the collector ring, etc., it can run at high speed for a long time, and output positive and negative torque signals;Both ends are connected by key;
definition: High precision Stable performance The maximum speed does not exceed 4000 rpm
