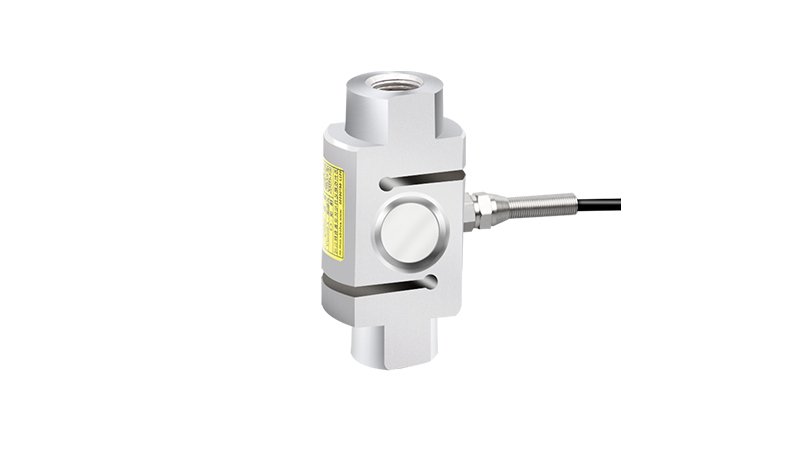

AT8318S sensor
Features and uses:
※ Low height, small deformation
※ Alloy steel material
※ Bidirectional tension and compression
※ Primarily used in portable scales, tension measurement and control, and other electronic weighing equipment.
| Model Number: | BHA | Place of Origin: | Zhejiang, China |
| Brand Name: | santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 5t,6t,7.5t,8t,10t,12t,18t,20t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.05%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ulitimate Overload: | 200%F.S |
50kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA401 belongs to FA411 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA401 can be used to measure load 50kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.05%F.S., and its Hysteresis ≤0.05%F.S..
| Model Number: | BHG | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 3t,5t,10t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.3%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ultimate Overload: | 200%F.S |
100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.
20-2000N Stainless Steel Tension Compression Force Sensor FA404 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA404 can be used to measure compression and tension force 20N,50N,100N,200N,500N,1000N and 2000N capacity, its Rated output range is 2.0±1%mV/V, and its Zero Balance range is ±2%F.S..
1-50kN Stainless Steel Tension Compression Force Sensor FA206 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor FA206 can be used to measure tension and compression force 1kN,2kN,5kN,10kN,20kN and 50kN capacity, its Zero Balance range is ±0.03mV/V, its Cable size is ⌀4x3000mm.
10-150kN Stainless Steel Tension Compression Force Sensor FA403 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA403 can be used to measure tension and compression force 10kN,20kN,50kN,75kN,100kN and 150kN capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±0.05mV/V.
5,10,20,50,100,200N Or Customized S type Load Cell FA301 is a model of our brand FIBOS FA3-Series, S type Load Cell FA301 can be used to measure force 5N,10N,20N,50N,100N,200N or customized capacity, its material we use Stainless steel, we can also customized material.
Diameter 13mm 50-1000N Miniature Tension Compression Force Sensor FA201A is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor FA201A belongs to FA201, it can be used to measure tension and compression force 50N,100N,200N,500N,1000N and 2000N or customized capacity, its Zero Balance range is ±0.2mV/V.
10,20,50,100kg Or Customized Tension Compression Force Sensor FA208 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor can be used to measure tension and compression force 10kg,20kg,50kg and 100kg or can be customized, its Creep(30min) ≤0.015%F.S. or can be customized, its Non-linearity,Hysteresis and Repeatability all ≤0.016%F.S. or can also be customized.
10,20,50,100,200kg Or Customized Tension Compression Force Sensor FA401A is a model of Tension Compression Force Sensor, it belongs to FA401 in our brand FIBOS FA4-Series, it can be used to measure load 10kg, 20kg, 50kg, 100kg and 200kg or customized capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.1%F.S. or can be customized.
50,100,200,500,1000,2000kg Or Customized Tension Compression Force Sensor FA130B belongs to FA130 which belongs to Tension Compression Force Sensor, FA130B can be used to measure compression force and tension force 50kg,100kg,200kg,500kg,1000kg and 2000kg or customized capacity, its Zero Balance range is ±0.5mV/V.
