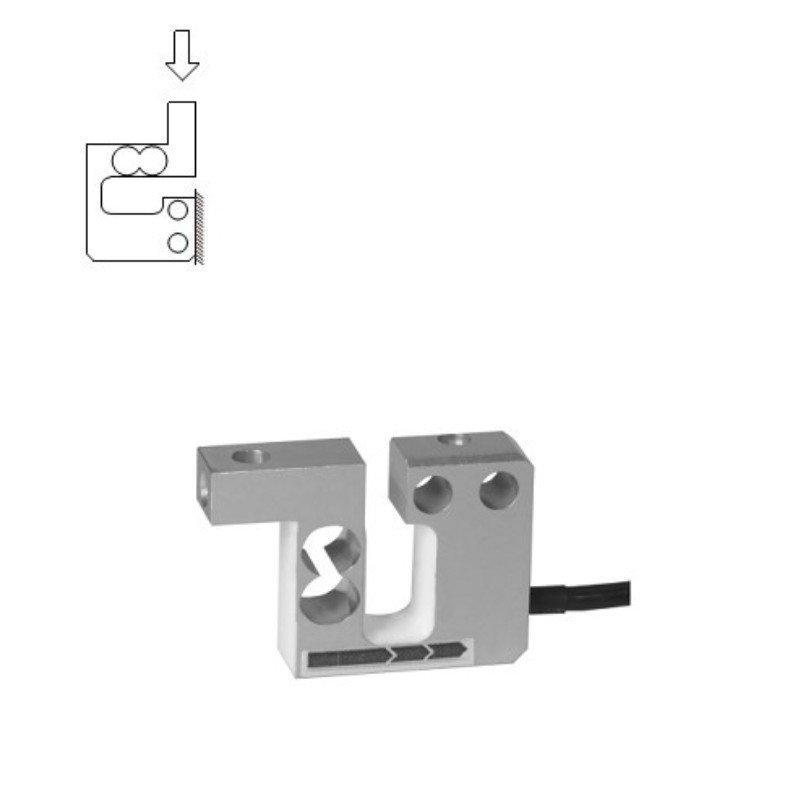

S beam load cell-AT52L
Description
AT52L S beam load cell is Aluminum alloy material, Mainly used for tension control, tensile testing etc.

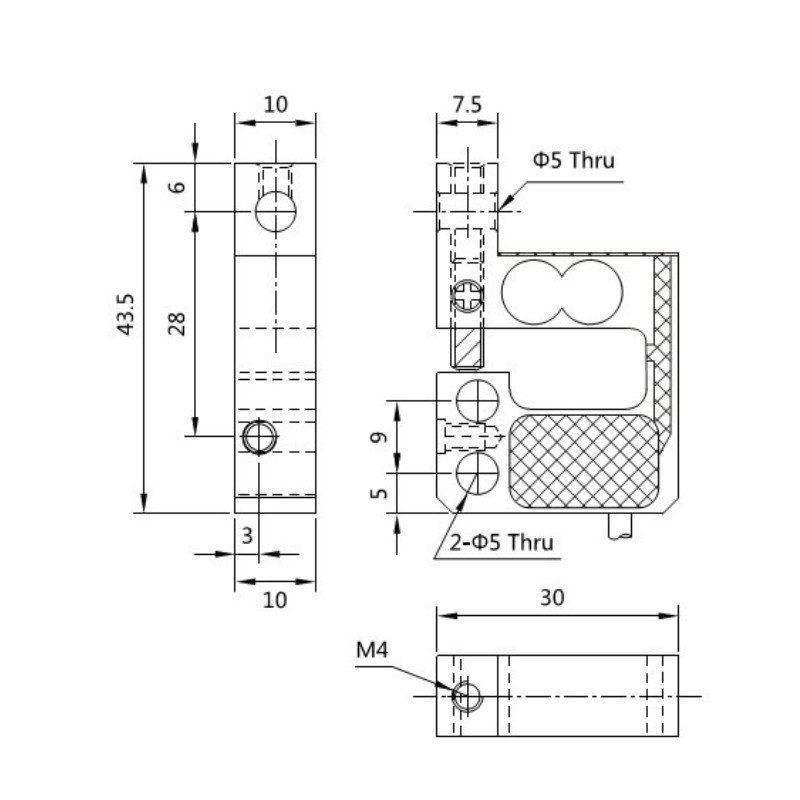

Drawing
Contact us if you need the Datasheet PDF.
AMOWELLSENSOR / S beam load cell-AT52L
AT52L S beam load cell is Aluminum alloy material, Mainly used for tension control, tensile testing etc.
| Accuracy | 0.03%F.S/30min |
|---|---|
| Certificate | RoHS, CE |
| Capacity | 1,2,5kg |
| Creep | ±0.03%F.S/30min |
| Material | Aluminum alloy |
| Model | AT52L |
| Sensitivity | 1.2±3%mv/v |
| Size | 40*43.5*7.5mm |
