AMOWELLSENSOR / Parallel beam load cell-AP63F

AP63F Single point load cell 4~30kg，Recommend max platform: 200*200mm. Suitable for dynamic measurement and vibration environments.

Accuracy ±0.01%F.S
Size 80*50*20mm
Creep ±0.02%F.S/30min
Material Aluminum alloy
Capacity 4,6,10,20,30kg
Certificate RoHS, CE
Model AP65T
Sensitivity 2.0±5%mV/V
Add to Wishlist
Share it:

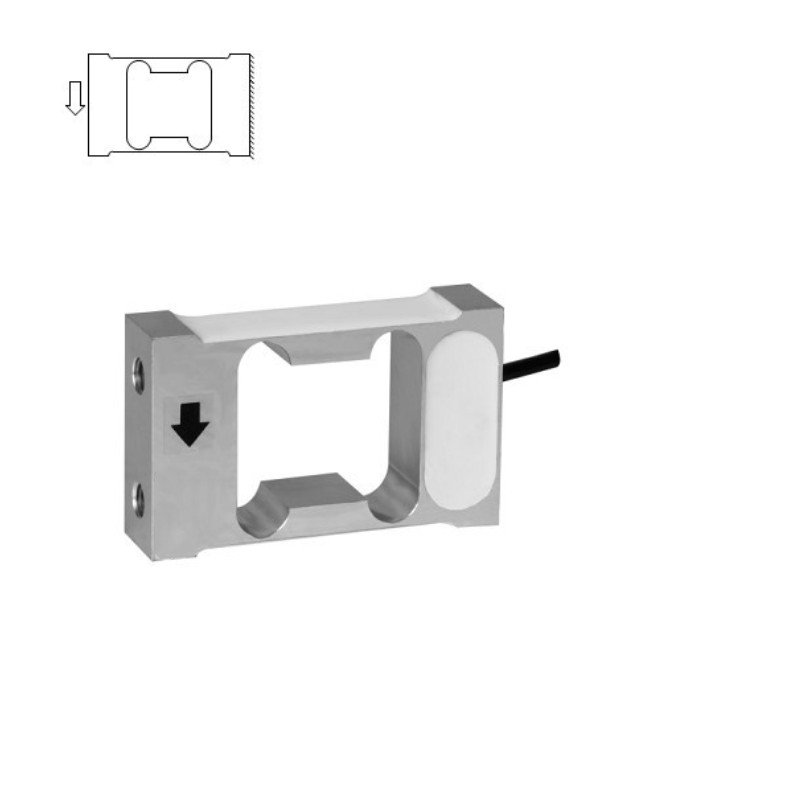

Parallel beam load cell-AP63F

Description

AP63F Single point load cell 4~30kg

1. Aluminum alloy, hermetically sealed with glue to IP65 2. Surface anodized and anti-corrosion, integral structure and easy installation. 3. Application: price computing scales, counting scale, automatic quantitative packaging machine;.

4. Suitable for dynamic measurement and vibration environments;
5. Recommend max platform: 200*200mm.

Drawing

Contact us if you need the Datasheet PDF.
