AMOWELLSENSOR / Pancake load cell-AS41C

Introducing our AS41C High-Performance Torsion Ring Load Cell, designed as a superior alternative to the HBM RTN model. This load cell features a robust torsion ring structure engineered to deliver precise force measurement and outstanding reliability in demanding industrial environments. It is ideally suited for applications requiring high accuracy, stability, and seamless integration into existing systems.

Capacity 10-47kN,100-220kN, 330kN, 470-680kN, 1000-1500kN
Accuracy 0.05~0.1%FS
Rated output 2.85mV/V
Non-linearity ±0.05%F.S
Creep 0.05%/30min
Zero balance ±1%mV/V
Input resistance 4450±200Ω
Output resistance 4000±10Ω
Protection Class IP68
Insulation Resistance ≥5000MΩ
Temp. effect on zero ±0.05%F.S/10℃
Temp. effect on span ±0.05%F.S/10℃
Add to Wishlist
Share it:

Pancake load cell-AS41C

Description

AS41C High-Performance Torsion Ring Load Cell – The Ideal Replacement for HBM RTN

Product Overview

Introducing our AS41C High-Performance Torsion Ring Load Cell, designed as a superior alternative to the HBM RTN model. This load cell features a robust torsion ring structure engineered to deliver precise force measurement and outstanding reliability in demanding industrial environments. It is ideally suited for applications requiring high accuracy, stability, and seamless integration into existing systems.

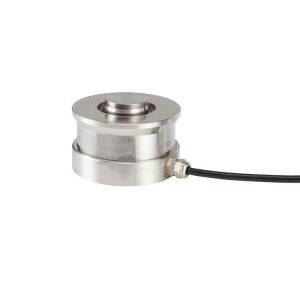

AS41C Torsion Ring Load Cell replacement HBM RTN

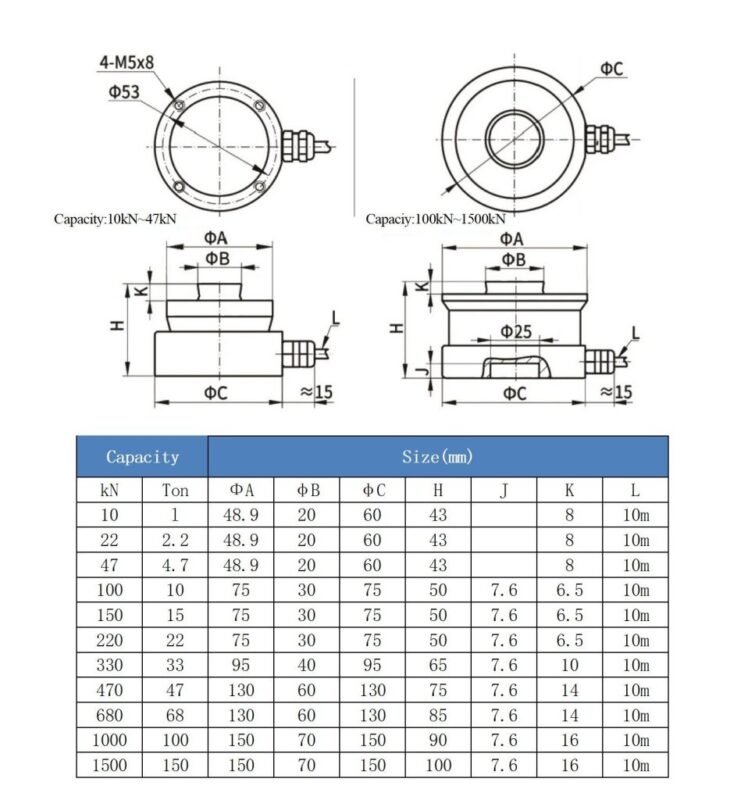

Drawing

Contact us if you need the Datasheet PDF.
