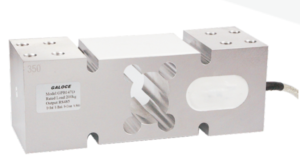

This parallel beam load cell with single point mounting, has optional capacities 4kg, 8kg, 10kg, 15kg, 20kg, and 30kg. The beam load cell belongs to the C3 accuracy class, offering high precision with a comprehensive accuracy of ±0.02% F.S. It adopts with a recommended excitation voltage of 5~12VDC and has a safe load limit of 150% F.S. High quality aluminum alloy, small range, high measurement accuracy, can be used in packaging machines and other occasions.

• Aluminum alloy,surface anodized and anticorrosion;
• Built-in digital module, digital signal output, RS485 or RS232;
• Max platform size: 250×350mm;
• Factory calibration, no calibration required.
• Modify the acceleration of gravity and can be used in other places without calibration;
• To change division value, after that, the corresponding weight can be output, no need for field calibration.
• The sensor has only one zero-setting command and a weight read command are immediately accessed.
• Mainly used in smart shelves, smart gravity cabinets, garbage recycling and others.

• Aluminum alloy
• Range:3,5,8,10,15,20,30,40,50,60,80,100kg
• Size: 130*30*22mm
• Recommend max platform: 250×350mm
• OEM&ODM; Customizable
• ISO9001,CE,RoHS
• Application: Smart bottles, smart shelves, Electronic precision scales,Bench scales, gas container scales,Industrial weighing systems

• Aluminum alloy,surface anodized and anticorrosion;
• Built-in digital module, digital signal output, RS485 or RS232;
• Max platform size: 400×400mm;
• Factory calibration, no calibration required
• Modify the acceleration of gravity and can be used in other places without calibration;
• To change division value, after that, the corresponding weight can be output, no need for field calibration;
• The sensor has only one zero-setting command and a weight read command are immediately accessed;
• Mainly used in smart shelves, smart gravity cabinets, garbage recycling and others.

• Aluminum alloy,surface anodized and anticorrosion;
• Built-in digital module, digital signal output, RS485 or RS232;
• Max platform size: 800×800mm;
• Factory calibration, no calibration required Modify the acceleration of gravity and can be used in other places without calibration;
• To change division value, after that, the corresponding weight can be output, no need for field calibration.
• The sensor has only one zero-setting command and a weight read command are immediately accessed.
• Mainly used in smart shelves, smart gravity cabinets, garbage recycling and others.

• Aluminum alloy,surface anodized and anticorrosion;
• Built-in digital module, digital signal output, RS485 or RS232;
• Max platform size: 400×500mm;
• Factory calibration, no calibration required.
• Modify the acceleration of gravity and can be used in other places without calibration;
• To change division value, after that, the corresponding weight can be output, no need for field calibration.
• The sensor has only one zero-setting command and a weight read command are immediately accessed.
• Mainly used in smart shelves, smart gravity cabinets, garbage recycling and others.

Capacity ：3~100kg
Material: aluminum-alloy
Type: Parallel beam type
Defend grade: IP65
Silicone rubber seal, surface anodized, good corrosion resistance.
Application: Mainly used for water proof electronic scale, balance, price computing scale and industrial weighing system
