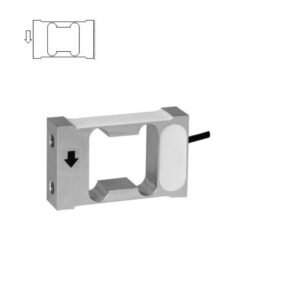

AP63F Single point load cell 4~30kg，Recommend max platform: 200*200mm. Suitable for dynamic measurement and vibration environments.
| Accuracy | ±0.01%F.S |
|---|---|
| Size | 80*50*20mm |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Capacity | 4,6,10,20,30kg |
| Certificate | RoHS, CE |
| Model | AP65T |
| Sensitivity | 2.0±5%mV/V |
Max.platform size :150*150mm
| Accuracy | ±0.02%F.S |
|---|---|
| Certificate | RoHS, CE |
| Material | Aluminum alloy |
| Capacity | 1.5,3,6kg |
| Creep | ±0.03 %F·S/30min |
| Model | AP65E |
| Sensitivity | 1.0±10%mV/V |
| Size | 59*22*12mm |
Max.platform size :600*600mm
| Accuracy | ±0.02%F.S |
|---|---|
| Certificate | RoHS, CE |
| Capacity | 60,100,150,200,300, 500kg |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |
| Model | AP65H |
| Size | 186*60*30mm |
Max.platform size :600*600mm
| Accuracy | ±0.02%F.S |
|---|---|
| Certificate | RoHS, CE |
| Capacity | 60,100,150,200,300, 500kg |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |
| Model | AP65H |
| Size | 186*60*30mm |
Max.platform size :400*400mm
| Capacity | 30,50,100,200kg |
|---|---|
| Accuracy | ±0.02%F.S |
| Certificate | RoHS, CE |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Model | AP65L |
| Sensitivity | 2.0±5%mV/V |
| Size | 151*46*24mm |
Max. platform size :150*150mm

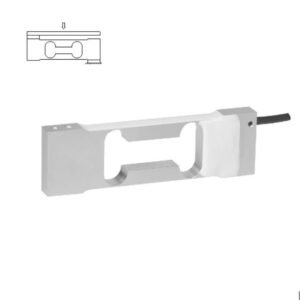

| Model | AP65O |
|---|---|
| Accuracy | ±0.02%F.S |
| Capacity | 0.3*0.6*1,1.5,3kg |
| Creep | ±0.015%F.S/2min |
| Material | Aluminum alloy |
| Sensitivity | 1.0±10%mV/V |
| Certificate | RoHS, CE |
| Size | 110*30*10mm |
Max. platform size :200*200mm
| Accuracy | ±0.02%F.S |
|---|---|

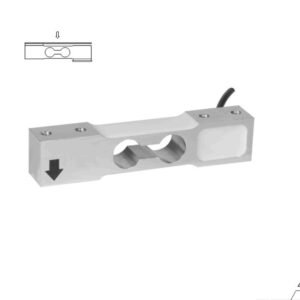

| Model | AP65S |
| Sensitivity | 2.0±10%mV/V |
| Capacity | 3,5,10,15,20kg |
| Certificate | RoHS, CE |
| Creep | ±0.03 %F·S/30min |
| Material | Aluminum alloy |
| Size | 96*20*16mm |
