Nickel plated alloy steel
The ZMNZT is double flanges type compression load cell, capacity from 300KN up to 5000KN. Construction using special steel. Efficient internal protection against the strong induced currents from lightning. The ZMNZT model is manufactured to maintain its performance capabilities in external environmental conditions. Its application is the load control in high capacity silos. Also, it substitutes level indicators with higher precision and reliability.
The ZMLBA is high precison spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP67. The load cell is suitable for testing machines and special measuring equipment. Stainless steel construction is optional.
Nickel plated alloy steel
The ZMPA is a series of low capacity, aluminium single-point load cells intended for a wide range of industrial applications. The ZMPA convert proportionally the mechanical input variable force into the electrical variable voltage. The load cells are ideal for use in platform scalem weighfeeders and bin weighers. The compact design facilitates planning into any given construction.
The ZMPB is a compact, low capacity aluminium single point load cell ideal for a wide range of weighing applications. The ZMPB load cells are produced entirely from stainless steel. They are connected electrically by a high-quality, 4-wire screened PVC cable.
The ZMPC is a series of aluminium single-point load cells intended for a wide range of industrial applications. High calibration accuracy which provides ideal conditions for the parallel arrangement of load cells.
The ZMPC is a series of aluminium single-point load cells intended for a wide range of industrial applications. One of the important applications is beehive scale. The ZMPC is with very high accuracy and stability. The very low corner error makes load cell extremely reliable.
Features:
The ZMPE single point load cell is a medium capacity weight sensor ideal for bench scales, platform scales and medical scales. The ZMPE is high reproducibility of the measuring signals and extremely low interference by transverse loads of the measured values.
The ZMQS is double ended shear beam load cell, capacity from 1t up to 30t. The load cell has high accuracy and high stability, widely used in elevator industry.
Features:
Nickel plated alloy steel

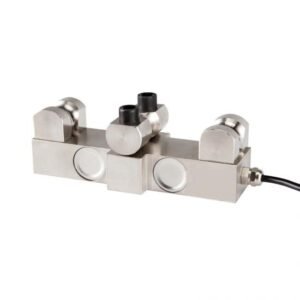

The ZMRC is rope clamp tension load cell measuring from 1t-20t. The load cell is easy to be installed with wire rope, which provides a simple way to measure weight in crane, hoist industry. The black printing is optional.
Nickel plated alloy steel
The S beam load cell provides good restraint to possible movement of the automation and in many cases. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Stainless steel
The ZMSAA S type tension load cell offers a wide range of capacities, extending from 10kg to 300kg. Constructed from alloy steel with an electroless nickel-plated surface, it’s a robust and reliable choice. We provide optional amplifer which converts analog sigal into 4-20mA, 0-5V or 0-10V.
Nickel plated alloy steel

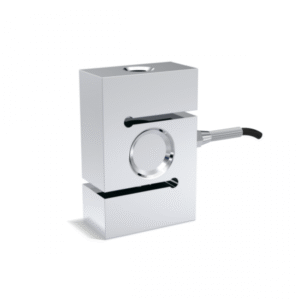

The ZMSAB S type tension load cell offers a wide range of capacities, extending from 200kg to 10t. Constructed from alloy steel with an electroless nickel-plated surface, it’s a robust and reliable choice. We provide optional amplifer which converts analog sigal into 4-20mA, 0-5V or 0-10V.
Nickel plated alloy steel
The ZMSGA provides good restraint to possible movement of the automation and in many cases. The load cell has overload preventer which can protect sensor under extrem overloding situtation. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSGA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Stainless steel
The ZMSSA S type load cell provides good restraint to possible movement of the automation and in many cases. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSSA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Stainless steel

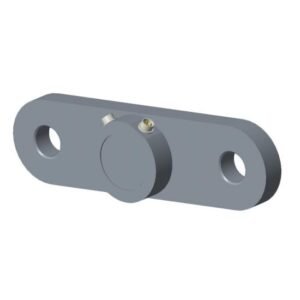

ZMSY is tension load cell which is contructed of alloy steel and is potted to IP67 providing excellent protection against moisture and humidity. It perfectly fits for use in industrial applications such as high capacity crane scales and testing equipment. Own to the proven and high quality strain gauge technology and full developed amplifiers providing reliable and exact measurement. A maritime or continental finishing is offered to provide permanent corresion protection.
