| Model Number: | QS-(M) | Place of Origin: | Zhejiang, China |
| Brand Name: | SANTWELL | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 10t-50t | Sensitivity: | 2.0000±0.002mv/v |
| Total Error: | ±0.03%F.S | Creep(30 minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | UItimate Overload: | 200%F.S |
| Model Number: | SBHL-(M) | Place of Origin: | Zhejiang, China |
| Brand Name: | SANTWELL | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
| Model Number: | SBKL-(M) | Place of Origin: | Zhejiang, China |
| Brand Name: | SANTWELL | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 0.5-3t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
| Model Number: | SQC-(M) | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | SANTWELL |
| Rated Load: | 0.5-3t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
Model No.: SBAL-(M)
Brand: santwell
Sensitivity: 2.0000±0.002mv/V
Construction: Alloy Steel/Aluminum
Protection Class: Ip67&Ip68
Total Error: ±0.02%f.S
Rated Load: 10-40t
Recommended Excitation Voltage: 5v~18v(Ac Or Dc)
Used with TJH-3A, the installation is more convenient, and it is suitable for small-scale storage tanks, storage scales, reactors, and other equipment.
Use with TJH-3 for easy installation, widely used in pharmaceutical and chemical, coal metallurgy, electronic truck scales, railway scales, storage scales, tanks, and other large-tonnage measuring equipment.
Used with TJH-4B, it has an automatic centering function, anti-eccentric load, and is easy to install. Widely used in belt scale, hopper scale, warehouse-scale, charging bucket, material mechanics testing machine, labor safety testing equipment, etc.
Used with TJH-4B, it has an automatic centering function, anti-eccentric load, and is easy to install. Widely used in belt scale, hopper scale, warehouse-scale, charging bucket, material mechanics testing machine, labor safety testing equipment, etc.
Used with TJH-4B, it has an automatic centering function, anti-eccentric load, and is easy to install. Widely used in belt scale, hopper scale, warehouse-scale, charging bucket, material mechanics testing machine, labor safety testing equipment, etc.
WM001C is a high-precision self-reset weighing module with high precision and easy installation. It is often used in electronic weighing platforms, tank reaction kettle weighing systems, etc.
Please check the foundation condition before installation: the plane drop of each installation point should be controlled within 3 mm, and the levelness of the same foundation surface should be controlled within 1mm/m; the bearing capacity of the installation base must be greater than the measuring range of the sensor.
There are screw holes on the upper and lower mounting plates of the weighing module for fixing the sensor module. Please do not loosen any nuts on the weighing module product during installation.
There are screw holes on the upper and lower mounting plates of the weighing module for fixing the sensor module. Please do not loosen any nuts on the weighing module product during installation.
Made of aluminum alloy.
High accuracy,high side load tolerance
Easy to install,IP65 protection
Mainly used for electronic scales,electronicbalance,price computing scales and industrial weighing systems

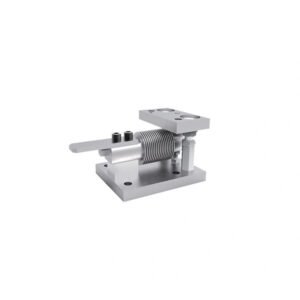

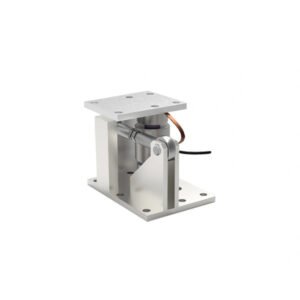

Weighing Module
Capacity: 0.25-2,5,10,15,20T
Category: Weighing Module
