- Measuring range: 0-5m
- Weight: 800g (cable pulling mechanism)
- Weight (pulling rope): 1.2g/m
- Length of each turn of the rope: 385mm
- Shell material: plastic, aluminum alloy
- Spring resilience: 3.3-4.4N
- Cable diameter: 0.6mm
- Rope material: high elastic 316 stainless steel rope
- Linearity: ≤±2mm
- Protection class: IP50
- Acceleration: 10 m/s²
- Roller circumference: 385mm
- Name: Economical encoder cable box BSL-GA130 series
- Can be customized on request
- Measuring range: 0-1.2m
- Weight (drawing rope): 0.58g/m
- Length of each turn of the rope: 250mm
- Spring resilience: 3.3-4.4N
- Pull rope diameter: 0.6mm
- Protection class: IP50
- Pull rope acceleration: 5m/s²
- Length of each turn of the rope: 150mm
- Actual length of the rope: 1.2m
- Name: Economical encoder cable box BSL-GA55A series
- Can be customized on request
- Measuring range: 0-1.2m
- Weight: 80kg (rope traction mechanism)
- Weight (drawing rope): 0.58g/m
- Length of each turn of the rope: 150mm
- Actual length of the rope: 1.2m
- Spring resilience: 1-1.4N
- Pull rope diameter: 0.5mm
- Protection class: IP50
- Rope speed: 5m/s²
- Name: Economical encoder cable box BSL-GA55B series
- Can be customized on request
- Measuring range: 0-3m
- Weight: 250g (cable pulling mechanism)
- Weight (pulling rope): 1.2g/m
- Length of each turn of the rope: 250mm
- Shell material: plastic, aluminum alloy
- Spring resilience: 3.3-4.4N1)
- Cable diameter: 0.6mm
- Name: Economical encoder cable box BSL-GA88 series
- Can be customized on request
- Measuring range: 0-5m
- Weight: 2.8kg (rope traction mechanism)
- Weight (draw rope): 7.1g/m
- Length of each turn of the rope: 333mm
- Actual length of the rope: 5.2m
- Spring resilience: 5-20N
- Pull rope diameter: 1.2mm
- Rope speed: 40m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA130-05 Series
- Can be customized on request
- Measuring range: 0-10m
- Weight: 5.8kg (rope traction mechanism)
- Weight (draw rope): 7.1g/m
- Length of each turn of the rope: 333mm
- Actual length of the rope: 10.2m
- Housing Material: Aluminum (anodized) plastic
- Spring resilience: 10-20N
- Pull rope diameter: 1.2mm
- Rope speed: 40m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA130-10 Series
- Can be customized on request
- Measuring range: 0-20m
- Weight: 7.8kg (rope traction mechanism)
- Weight (draw rope): 2.6g/m
- Length of each turn of the rope: 333mm
- Actual length of the rope: 20.2m
- Housing Material: Aluminum (anodized) plastic
- Spring resilience: 10-20N
- Pull rope diameter: 0.8mm
- Protection class: IP64
- Rope speed: 30m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA130-20 Series
- Can be customized on request
- Measuring range: 0-30m
- Weight: 9.8kg (cable traction mechanism)
- Weight (pulling rope): 2.6g/m
- Length of each turn of the rope: 333mm
- Housing Material: Aluminum (anodized) plastic
- Spring resilience: 10-20N
- Cable diameter: 0.8mm
- Industrial Precision Encoder Cable Box BSL-MA130-30 Series
- Can be customized on request
- Measuring range: 0-2m
- Weight: 1.3kg (rope traction mechanism)
- Weight (pulling rope): 7.1g/m
- Length of each turn of the rope: 200mm
- Actual length of the rope: 2.2m
- Housing Material: Aluminum (Anodized), Die-cast Zinc
- Spring resilience: 6-14N
- Pull rope diameter: 1.2mm
- Protection class: IP64
- Rope speed: 40m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA80 Series
- Can be customized on request
- Measuring range: 0-3m
- Weight: 1.5kg (rope traction mechanism)
- Length of each turn of the rope: 200mm
- Actual length of the rope: 3.2m
- Spring resilience: 6-14N
- Pull rope diameter: 1.2mm
- Protection class: IP64
- Rope speed: 40m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA80-03 Series
- Can be customized on request
- Measuring range: up to 3000mm
- Pull Speed: Max 1m/s
- Wire diameter specification: 1mm highly flexible 304 stainless steel wire rope
- Protection class: IP54
- Product name: Cable displacement sensor CWP-M4000 series
- Can be customized on request
- Measuring range: up to 1000mm
- Measuring wheel circumference: 100mm
- Working pull: 5N
- Linearity: 0.1%
- Weight: <0.5KG
- Protection class: IP54
- Rope speed: maximum 0.6m/s
- Product Name: Pull Wire Displacement Sensor CWP-S1000 Series
- Can be customized on request
- Measuring range: up to 1500mm
- Measuring wheel circumference: 150mm
- Speed: Max 0.8m/s
- Pull rope tension: 5N
- Weight: <0.7KG
- Linearity: 0.1%
- Protection class: IP54
- Product name: Cable displacement sensor CWP-S1500 series
- Can be customized on request
- Measuring range: up to 2000mm
- Measuring wheel circumference: 200mm
- Speed: Max 0.8m/s
- Pull rope tension: 5N
- Protection class: IP54
- Rope speed: maximum 0.6m/s
- Product Name: Pull Wire Displacement Sensor CWP-S2000 Series
- Can be customized on request

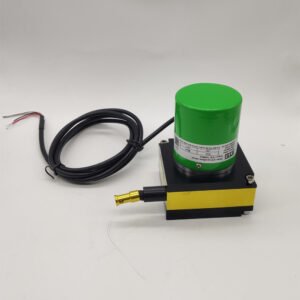

- Measuring range: up to 3000mm
- Measuring wheel circumference: 300mm
- Pulling speed: maximum 0.6m/s
- Pull rope tension: 5-10N
- Weight: <1KG
- Wire diameter specification: 0.8mm highly flexible 304 stainless steel wire rope
- Linearity: 0.25%
- Protection class: IP54
- Material: aluminum alloy
- Resolution: Essentially infinite
- Accuracy: 0.05%F.S.
- Rope speed: maximum 0.6m/s
- Product Name: Pull Wire Displacement Sensor CWP-S3000 Series
- Can be customized on request
- Measuring range: up to 400mm
- Measuring wheel circumference: 40mm
- Speed: Max 0.6m/s
- Pull rope tension: 3N
- Weight: <0.5KG
- Protection class: IP54
- Material: aluminum alloy
- Vibration: 10Hz to 2000Hz
- Wire diameter specification: 0.6mm highly flexible 304 stainless steel wire rope
- Product name: Cable displacement sensor CWP-S400 series
- Can be customized on request
