PC10 piezoresistive silicon pressure sensor is the core component for the manufacture of pressure sensors and pressure transmitters. As high-performance pressure sensitive component, PC10 can be easily amplified and assembled into the pressure transmitters with standard signal output.

PC10 packages diffused silicon pressure sensitive die to 316L stainless steel housing. External pressure is transmitted to pressure sensitive die through stainless steel diaphragm and internally sealed silicon oil. Pressure sensitive die does not directly contact with measured medium, forming all solid structure of pressure measurement. So the product can be applied to a variety of occasions, including harsh corrosive medium environment.

PC10 uses O-ring for pressure seal, which is easy to install.

The company can also undertake special customization based on the needs of users, such as pressure sensors of all welded structure, wide temperature compensation, high reliability, anti-shock and anti-vibration sensors, especially for national defense weapons and equipment.

PC11B all welded pressure sensor, China pressure sensor, wotian pressure sensor,  pressure  sensor

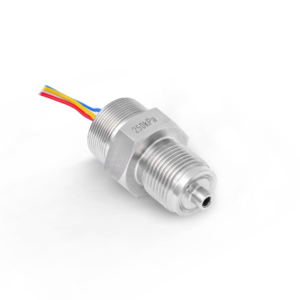

PC11B all welded pressure sensor is to package PC10 pressure sensor into the workpiece with standard pressure connection. Nanjing Wotian Technology Co., Ltd is a Chinese manufacturer that produces the pressure sensors and transmitters.

• Full welded seal, can be used in harsh environment
• High performance, all solid, corrosion resistant
• High accuracy and stability
• Strong anti-interference, good long-term stability
• Constant current excitation option
• Customization available

PC11B all welded pressure sensor, China pressure sensor, wotian pressure sensor,  pressure  sensor

PC11B all welded pressure sensor is to package PC10 pressure sensor into the workpiece with standard pressure connection. Nanjing Wotian Technology Co., Ltd is a Chinese manufacturer that produces the pressure sensors and transmitters.

•  Piezoresistive silicon chip employed
•  Perfect long term stability
•  MEMS technology
•  Sensor diameter: 19mm

PC30 pressure sensor with thread,China pressure sensor,wotian pressure sensor, pressure  sensor factory

PC30 pressure sensor is a standard and popular sensor applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor.Nanjing Wotian Technology Co., Ltd is a Chinese manufacturer that produces the pressure sensors and transmitters.

PC50 Piezoresistive Silicon Pressure Sensor is the core component for producing pressure sensors and pressure transmitters; as a kind of pressure sensitive elements with high performance, it can be conveniently processed through amplifying, and assembled into the transmitter with the standard signal output.

PC50 sensor packages piezoresistive silicon sensitive pressure die into 316L stainless steel housing, the external pressure is transmitted to the sensitive die through the stainless steel diaphragm and internally sealed silicon oil; the sensitive die does not directly contact with the measured medium, so as to form all solid structure of pressure measurement, so this product can be applied to a variety of occasions, including harsh corrosive medium environment.

PC50 sensor adopts O-ring for pressure sealing, easy to install. Our company can also undertake the special customization according to the requirements of the customers, for example, all-welded structure, wide temperature compensation, highly reliable, anti-strong shock and anti-vibration pressure sensors, especially for supporting the national defense weaponry.

Features

■ 316L stainless steel diaphragm structure

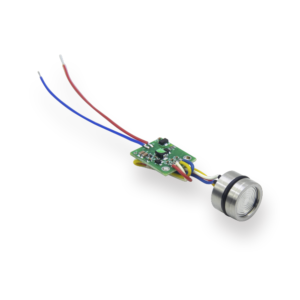

■ Sensor + circuit structure

■ Small size, light weight

■ The product has been calibrated and used directly after installation

■ Strong anti-interference, good long-term stability

■ Wide range, can measure absolute pressure, gauge pressure and seal pressure

Applications

■ Process control

■ Aviation and aerospace

■ Automobile, medical equipment

■ Piping system

Features

■Imported sensor die with high reliability

■Temperature compensation of wide range

■Constant voltage compensation for normalized output

■Sealant pouring compensating board with excellent moisture resistance

■Small size, convenient for installation and use

■Pressure connection customization available

■Sensor diameter: 12.6mm

The PC20B temperature and pressure integrated sensor is optimized based on PC20, with built-in temperature measuring elements in silicone oil, achieving synchronous measurement of pressure and temperature while improving temperature sensitivity, and meeting the need for further temperature compensation of the sensor.

PC20 temperature and pressure integrated sensor,China pressure sensor, wotian pressure sensor

PC20 temperature and pressure integrated sensor is designed with PT100 or PT1000. Nanjing Wotian Technology Co., Ltd is the Chinese manufacturer that produces the pressure sensors and transmitters. It sell 1,5 million pieces pressure sensors and transmitters to 70 countries per year.
