Product description:
LP510S is special double ended shear beam load cell, its sharp is pin, it is with throughout-hole to accommodate strain gauge, instead of typical side 4pcs cavities, which improve sealing performance significantly, not easy damaged in harsh environment.
Main Features:
• Material: Stainless steel
• Rated Capacities: 25KN~90KN
• Through-hole to accommodate strain gauge
• IP Rating: IP69K
• Suitable for force measurement device and safety controlling against overload
• Excellent sealing performance
Category: Others
Product description:
S510 is a square-shaped tension & compression load cell, completely hermetically sealed by laser to ensure it can work in harsh environment. Available in a wide range of capacities from 500lb to 10klb
Main Features:
• Material: Alloy steel (with imperial thread)
• Rated Capacity: 500lb~10klb
• OIML R60, NTEP HB44, CPA, CE and RoHS certified
• IP Rating: IP66 / IP68
• Suitable for process weighing of hopper scales, silo scales, tank scales, also force measurement.
• High precision by OIML R60 C5, high reliability
Category: Tension
Product description:

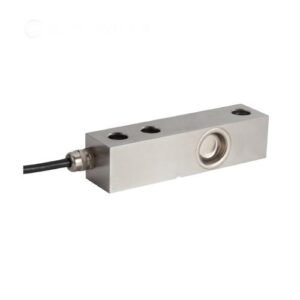

The B510 series are atypical and high precision, low-profile single-ended shear beam load cells, which are available in a wide range of capacities. Full alloy steel or stainless steel (optional) construction and complete hermetic sealing ensures reliable accuracy and robustness in harsh industrial applications. The B510 series are the ideal load cells for high precision weighing platforms with bolts by 2 pcs through-holes firmly at end, meanwhile the force would be applied from the self-aligning feet by the other end vertically.
Main Features:
• Material: Alloy steel，stainless steel optional
• Rated Capacities: 100kg~10t (100lb to 20Klb)
• OIML R60, NTEP HB44, CE and RoHS certified
• IP Rating: IP67, IP68
• Suitable for floor scales, medical bed weighing and other electronic weighing devices.
• High precision by OIML R60 C5, high reliability.
Category: Shear Beam
Product description:

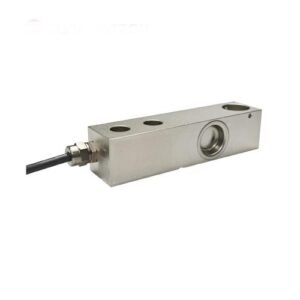

The B511 series are atypical and high precision, low-profile single-ended shear beam load cells, which are available in a wide range of capacities. Full alloy steel or stainless steel (optional) construction and complete hermetic sealing ensures reliable accuracy and robustness in harsh industrial applications. The B511 series are the ideal load cells for high precision weighing platforms with bolts by 2 pcs through-holes firmly at end, meanwhile the force would be applied from the self-aligning leveling rob settled in blind-hole vertically.
Main Features:
• Material: Alloy steel，stainless steel optional
• Rated Capacities: 500kg~2t
• OIML R60, NTEP HB44, CE and RoHS certified
• IP Rating: IP67, IP68
• Suitable for floor scales, medical bed weighing and other electronic weighing devices.
• High precision by OIML R60 C5, high reliability.
Category: Shear Beam
Product description:
The B515 series are atypical and high precision, low-profile single-ended shear beam load cells, which are available in a wide range of capacities. Full alloy steel or stainless steel (optional) construction and complete hermetic sealing ensures reliable accuracy and robustness in harsh industrial applications. The B515 series are the ideal load cells for high precision weighing platforms with bolts by 2 pcs through-holes firmly at end, meanwhile the force would be applied from neck-shaped stand with related connector by the other end vertically.
Main Features:
• Material: Alloy steel，stainless steel optional
• Rated Capacities: 0.5t~5t
• OIML R60, NTEP HB44, CE and RoHS certified
• IP Rating: IP67, IP68
• Suitable for silo scales, hopper scales, tank scales, etc.
• High precision by OIML R60 C5, high reliability.
Category: Shear Beam
Product description:
The B520 series are atypical and high precision, low-profile single-ended shear beam load cells, which are available in a wide range of capacities. Full alloy steel or stainless steel (optional) construction and complete hermetic sealing ensures reliable accuracy and robustness in harsh industrial applications. The B520 series are the ideal load cells for high precision weighing platforms with bolts by 2 pcs through-holes firmly at end, meanwhile the force would be applied from the self-aligning feet by the other end vertically.
Main Features:
• Material: Alloy steel，stainless steel optional
• Rated Capacities: 100kg~2t
• OIML R60, NTEP HB44, CE and RoHS certified
• IP Rating: IP67, IP68
• Suitable for floor scales, medical bed weighing and other electronic weighing devices.
• High precision by OIML R60 C5, high reliability.
Category: Shear Beam
Product description:
The B530, B730 series are typical and high precision, low profile single-ended shear beam, which are available in a wide range of capacities. Full stainless steel construction and complete hermetic sealing ensures reliable accuracy and robustness in harsh industrial applications. The B530, B730 are the ideal load cell for high precision weighing platforms with bolts by 2pcs through-holes firmly at end, meanwhile the force would be applied from the self-aligning level-pin settled into the blind hole at the other end vertically.
Main Features:
• Material: Stainless steel
• Great long-term stability.
• Rated Capacities: 0.5~5t
• OIML R60, NTEP HB44, CE and RoHS certified
• IP Rating: IP68
• Suitable for platform scales, dosing system and process control in chemical, food, pharmaceutical and other industries.
• High precision by OIML R60 C5, high reliability.
• B730S with 17-4PH material and PEEK strain gauge from HBK.
Category: Shear Beam
Product description：

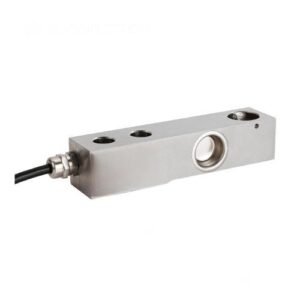

The B535, B735 series are typical and high precision, low profile single-ended shear beam, which are available in a wide range of capacities. Full stainless steel construction and complete hermetic sealing ensures reliable accuracy and robustness in harsh industrial applications. The B535, B735 series are the ideal load cell for high precision weighing platforms with bolts by 2pcs through-holes firmly at end, meanwhile the force would be applied from the self-aligning level-pin settled into the top half blind hole at the other end vertically. Also receive force via the second half threaded hole with levelling foot together.
Main Features：
• Be forced structure with the top-half blind hole and the second half threaded hole
• Material: high-quality stainless steel
• Great long-term stability.
• Rated Capacities: 550kg~4.4t
• OIML R60, NTEP HB44, CE and RoHS certified
• IP Rating: IP68
• Suitable for platform scales, dosing system and process control in chemical, food, pharmaceutical and other industries.
• High precision by OIML R60 C5, high reliability.
• B735S with 17-4PH material and PEEK strain gauge from HBK.
Category: Shear Beam
Product description：

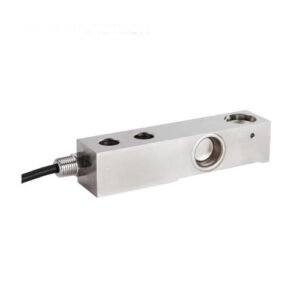

The B550SD series are typical and high precision, low profile single-ended shear beam available in a wide range of capacities. Full stainless steel construction and complete hermetic sealing ensures reliable accuracy and robustness in harsh industrial applications. The B550SD/B750SD are the ideal load cell for high precision weighing platforms with bolts by 2pcs through-holes firmly at end, meanwhile the force would be applied from the self-aligning level-pin settled into the blind hole at the other end vertically.
Main Features:
• Material: high-quality stainless steel
• Great long-term stability.
• Rated Capacities: 220kg~4.4t
• OIML R60, NTEP HB44, CE and RoHS certified
• IP Rating: IP68
• Suitable for platform scales, dosing system and process control in chemical, food, pharmaceutical and other industries.
• High precision by OIML R60 C10, high reliability.
• B750SD with 17-4PH material and PEEK strain gauge from HBK.
Category: Shear Beam
Product description：
The B560, B760S series are typical and high precision, low profile single-ended shear beam available in a wide range of capacities. Full stainless steel construction and complete hermetic sealing ensures reliable accuracy and robustness in harsh industrial applications. The B560S, B760S are the ideal load cell for high precision weighing platforms with bolts by 2pcs through-holes firmly at end, meanwhile the force would be applied from the self-aligning level-pin settled into the blind hole at the other end vertically.
Main Features:
• Material: high-quality stainless steel
• Great long-term stability.
• Rated Capacities: 5KN~100KN
• IP Rating: IP68
• Suitable for platform scales, dosing system and process control in chemical, food, pharmaceutical and other industries.
• High precision by OIML R60 C5, high reliability.
• B760S with 17-4PH material and PEEK strain gauge from HBK.
Category: Shear Beam
Product description：

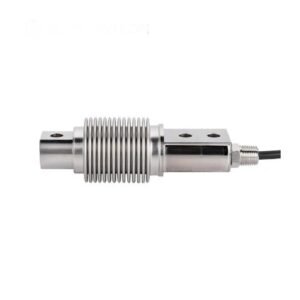

B570S is a bending-typed load cell, which is compact and high precision. Widely be applied onto process weighing, such as hopper scales, tank scales, silo scales, ect.
Main Features:
• Material: stainless steel
• Rated Capacities: 10kg~500kg
• OIML R60, NTEP HB44, CPA, CE and RoHS certified
• IP Rating: IP68 IP69K
• To be with dense corrugated sleeve to improve performance of low capacity
• To be with robust connector with external thread to fit cable protective tube
• Suitable for waterproof scales, process weighing equipment in Harsh working conditions
• High accuracy of OIML R60 C6
Category: Shear Beam
Product description:
DB510A is a low-profile double ended shear beam load cells is designed for industrial vehicles and agricultural trailer weighing system with high accuracy, Some high duty truck’s overload controlling is to ensure safe operation. The DB510A provides a very low profile design which allows for a wide range of installation options for on board vehicle weighing applications, Generally, the load cells are mounted between truck base chassis and upper frame, the lower, the more safer.
Main Features:
• Material: Alloy steel
• Rated Capacities: 15t
• IP Rating: IP68
• Suitable for onboard vehicle weighing system and other electronic weighing devices
• High precision, high reliability
Category: Double shear beam
Product description：
DB520A is a low-profile double ended shear beam load cells, which is designed for industrial vehicles and agricultural trailer high precision weighing system, Some high duty truck’s overload controlling is to ensure safe operation. The DB520A provides a very low-profile design which allows for a wide range of installation options for onboard vehicle weighing applications, Generally, the load cells are mounted between truck base chassis and upper frame, the lower profile, the more safer.
Main Features:
• Material: Alloy steel
• Rated Capacities: 15t
• IP Rating: IP68
• Suitable for onboard vehicle weighing system and other electronic weighing devices
• High precision, high reliability
Category: Double shear beam
Product description:

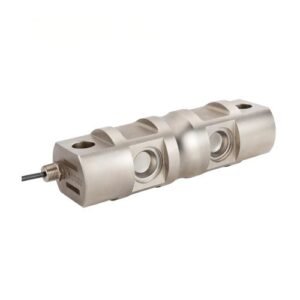

DB903A is a double ended shear beam, both ends loaded, center supported via self-aligning ring groove structure, so that the force can be applied properly. This load cell is suitable for a wide range of truck scales, rail scales and process weighing equipment of tank, bin and hopper scale, etc. It is bolted at both ends.. Fully alloy steel construct, hermetically sealed, which ensure high seals performance of waterproof.
Main Features:
• Material: Alloy steel
• Rated Capacities: 10klb~250klb
• IP Rating: IP68
• Suitable for truck scale, heavy duty hopper scale and other electronic weighing devices.
• High precision by NTEP III L 10000, high reliability.
Category: Double shear beam
Product description:
DB916A is a double ended shear beam, both ends loaded, center supported via self-aligning column structure, so that the force can be applied properly. This load cell is suitable for a wide range of truck scales, rail scales and process weighing equipment of tank, bin and hopper scale, etc. It is bolted at both ends.. Fully alloy steel construct, hermetically sealed, which ensure high seals performance of waterproof.
Main Features:
• Material: Alloy steel
• Rated Capacities: 2.5klb~100klb
• IP Rating: IP68
• Suitable for truck scale, heavy duty hopper scale and other electronic weighing devices.
• High precision by NTEP III L 10000, high reliability.
Category: Double shear beam
Product description:

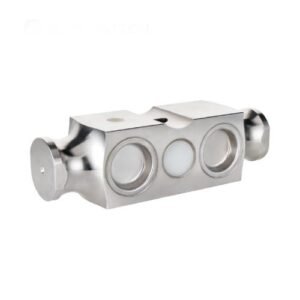

DB923A is a double ended shear beam, both ends loaded, center supported via self-aligning semicircular groove structure, so that the force can be applied properly. This load cell is suitable for a wide range of truck scales, giant vessel scales and rail scales. It is designed to use parallel link loading at both ends. Fully alloy steel construct, hermetically sealed, which ensure high seals performance of waterproof.
Main Features:
• Material: Alloy steel
• Rated Capacities: 50klb~125klb
• OIML NTEP HB44, CE and RoHS certified
• IP Rating: IP68
• Suitable for truck scale, heavy duty hopper scales and other electronic weighing devices.
• High precision by NTEP III L 10000, high reliability.
Category: Double shear beam
