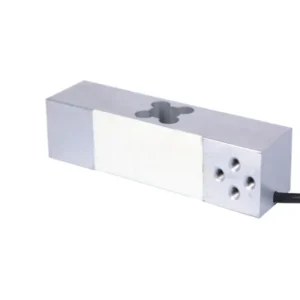

Since established, our company has focused on setting up a technology development team which aims to develop and upgrade technologies to effectively manufacture products. Its uses have been expanded to the field(s) of Aluminum Alloy 80kg load cell 50 Grams Platform Scale Single Point load cell 300kg 500kg weight sensor A632. Apart from the benefits for general consumers, Aluminum Alloy 80kg load cell 50 Grams Platform Scale Single Point load cell 300kg 500kg weight sensor A632 can offer amazing advantages to businesses in terms of sales and customer satisfaction. Ningbo Santwell Import & Export Co., Ltd with high quality and good reputation, it has won a good reputation in the industry.
| Model Number: | A632 | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 50kg~1000kg | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
Thanks to the efforts of our staff,Ningbo Santwell Import & Export Co., Ltd can launch our Alloy Steel load cell 300kg 500kg prices of load cell Indicator For Platform Scales A638 release meeting as scheduled. Our Force Sensors & Load Cells is supplied with a competitive price . Since launched, Alloy Steel load cell 300kg 500kg prices of load cell Indicator For Platform Scales A638 has been receiving mounting acclaim from customers. In the future, Ningbo Santwell Import & Export Co., Ltd will continue to attach importance to the cultivation of talents, continuously improve the staff’s business level and professional skills, strengthen technological innovation, and continuously enhance the comprehensive competitiveness of the company, in order to achieve’building a century-old evergreen enterprise and creating a well-known international brand’ Work hard for this grand goal.
| Model Number: | A638 | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Rated Load: | 50kg~1000kg | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |

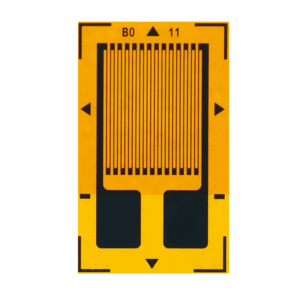

The AA strain gauge is a strain gauge designed with for linear strain measurement. Its grid pattern is simple yet versatile and can be made to different lengths to best suit the application

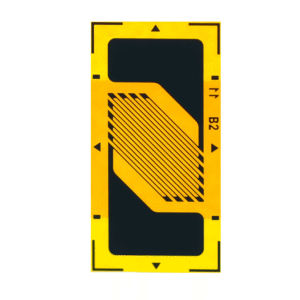

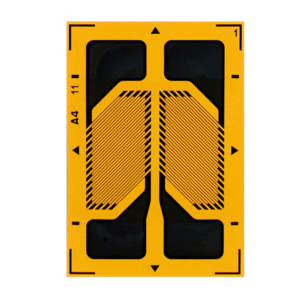

The AB strain gauge is designed for Torsion and Shear applications. This type is in 1/4 Bridge configuration must be paired with other strain gauges for Shear and Torsional strain measurements.

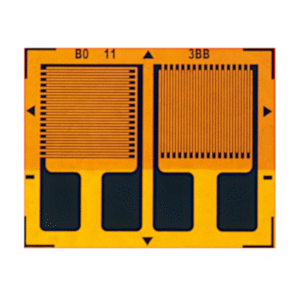

The BB strain gauge is a strain gauge designed with two strain gauges. The two strain gauges are oriented 90 degrees apart (or in a TEE configuration) and are designed to work in tandem in Half-Bridge configuration. Multiple configurations are available to address different mounting configurations with three or four terminal outputs.

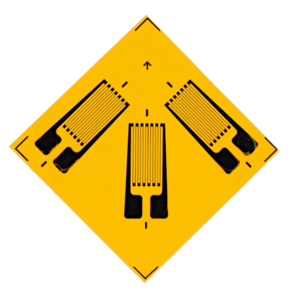

The CA strain gauge is a strain gauge designed with 3 linear strain gauges. Unlike BB strain gauges, CA strain gauges are oriented in 45° to help simplify installation in special applications.

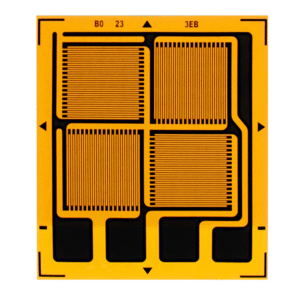

The EB strain gauge is a special strain gauge that incorporates 4 individual strain gauges oriented 90° apart and configured in a full bridge configuration. The full bridge configuration means the strain gauges are pre-wired internally so no additional connections are required. Only 4 terminals are available: 2 for input and 2 for output making it easy to install. Wiring options are available to accommodate different applications.

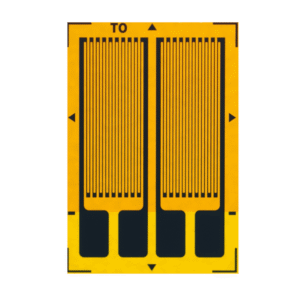

The FB strain gauge is a strain gauge designed with two strain gauges. Unlike the BB strain gauge series, the FB strain gauges are parallel and are oriented in the same axis. Options are available for three or four terminal output.

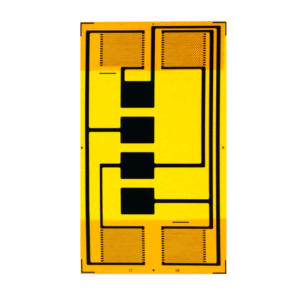

The FG strain gauge is a strain gauge designed with four individual strain gauges arranged in Wheatstone bridge configuration.

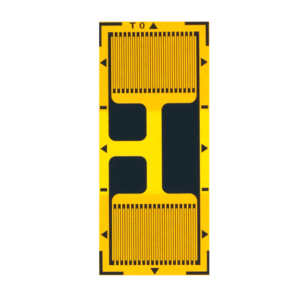

The GB strain gauge is a strain gauge designed with two strain gauges. Unlike the FB strain gauge series, the GB strain gauges are parallel and are oriented parallel axis set a certain distance apart. Options are available for three or four terminal output.
The GB strain gauge is a strain gauge designed with two strain gauges. Unlike the FB strain gauge series, the GB strain gauges are parallel and are oriented parallel axis set a certain distance apart. Options are available for three or four terminal output.

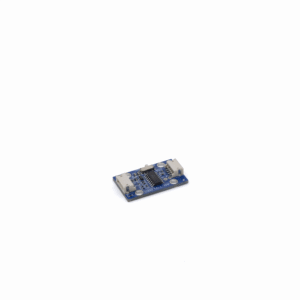

The HX711C is an amplifier for load cells and strain gauges. It uses the HX711 Integrated Circuit (IC) to convert the mV/V output signals from load cells into amplified digital value that can be read by a microcontroller or PLC system.
HX711C는 로드셀 및 스트레인 게이지용 증폭기입니다. HX711 집적 회로(IC)를 사용하여 로드셀의 mV/V 출력 신호를 마이크로컨트롤러 또는 PLC 시스템에서 읽을 수 있는 증폭된 디지털 값으로 변환합니다.
The HX711N is an amplifier for load cells and strain gauges. It uses the HX711 Integrated Circuit (IC) to convert the mV/V output signals from load cells into amplified digital value that can be read by a microcontroller or PLC system. Unlike the HX711C, the HX711N does not come with on-board connectors and has solder terminals instead. Users can solder the load cell or strain gauge wires directly or use standard 2.54mm headers for prototyping.
HX711N은 로드셀 및 스트레인 게이지용 증폭기입니다. HX711 IC(집적 회로)를 사용하여 로드셀의 mV/V 출력 신호를 마이크로컨트롤러 또는 PLC 시스템에서 읽을 수 있는 증폭된 디지털 값으로 변환합니다. HX711C와 달리 HX711N은 온보드 커넥터가 없고 납땜 단자를 사용합니다. 사용자는 로드셀 또는 스트레인 게이지 와이어를 직접 납땜하거나 표준 2.54mm 헤더를 사용하여 프로토타입을 제작할 수 있습니다.

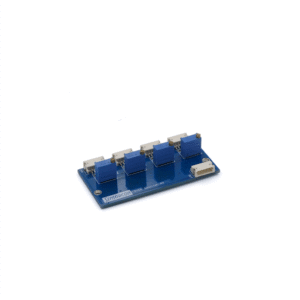

The JB4 is a special amplifier for load cells and strain gauges. It is also known as a “Junction Box” or “Summing Box” Unlike the HX711C, the JB4 combines multiple load cell and averages all the values into a single value. The input is in millivolts and the output is also in millivolts. The JB4 also contains a tuning circuit in each of the load cell inputs to balance any differences in the output.
***This amplifier cannot read each individual load cell***
JB4는 로드셀 및 스트레인 게이지용 특수 증폭기입니다. “정션 박스” 또는 “서밍 박스”라고도 합니다. HX711C와 달리 JB4는 여러 로드셀을 결합하여 모든 값의 평균을 단일 값으로 계산합니다. 입력은 밀리볼트(mV)이고 출력도 밀리볼트(mV)입니다. JB4는 각 로드셀 입력에 튜닝 회로를 내장하여 출력 차이를 균형 있게 조정합니다. ***이 증폭기는 개별 로드셀을 읽을 수 없습니다***

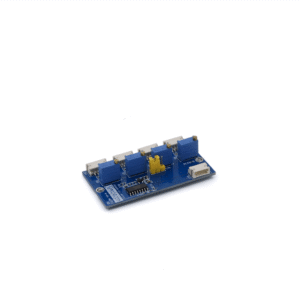

The JB4-HX711 is an amplifier for load cells and strain gauges. It combines the functionality of the HX711C and the JB4 to simplify weighing installations. Multiple load cell outputs are summed and it uses the HX711 Integrated Circuit (IC) to convert the mV/V output signals from load cells into amplified digital value that can be read by a microcontroller or PLC system.
JB4-HX711은 로드셀 및 스트레인 게이지용 증폭기입니다. HX711C와 JB4의 기능을 결합하여 계량 설치를 간소화합니다. 여러 로드셀 출력을 합산하고, HX711 집적 회로(IC)를 사용하여 로드셀의 mV/V 출력 신호를 마이크로컨트롤러 또는 PLC 시스템에서 읽을 수 있는 증폭된 디지털 값으로 변환합니다.
The GB strain gauge is a strain gauge designed with two strain gauges. Unlike the FB strain gauge series, the GB strain gauges are parallel and are oriented parallel axis set a certain distance apart. Options are available for three or four terminal output.
