Precision low profile load cell for sales at low price. The spoke type load cell, made of high-strength 42CrMo alloy steel, offers a capacity range of 0-100KN (optional 0-10/20/30/50/100KN), a frequency response of 10kHz, and operates within -20~80℃. With safe and ultimate overload limits of 120% and 150%. Ideal for force measurement, overhead weighing, rail scales, hopper scales, and automated control systems.

Affordable pancake load cells with capacities ranging from 50 ton/200 ton to 500 ton are available for sale at low cost! Made of alloy steel, the load cell is extremely accurate and meets the needs of various scenarios of silo/tank weighing.

Buy affordable tension and compression load cell, threaded inline, support 0-20kN measuring range and repeatability of 0.5% F.S. with 350/700Ω impedance and 10kHz response frequency. The load cells are designed with a stainless steel body for durability, and can withstand an operating voltage of 5-15 V.

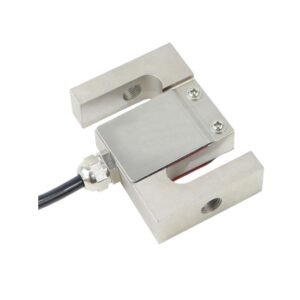

Low price S beam load cell with bidirectional force for sale. S type load cell has different measuring ranges 50kg-5 ton, and different output signals analog, digital, RS485 output. The beam load cell offers 2mV/V sutput sensitivity, 5-15V operating voltage, suitable for hopper scale material weighing pendant, spring tension test bench, pressure monitoring test bench.

High-quality S-type load cells for sale are used for tension and compression and are available in a variety of capacities from 200kg to 5 tons. Constructed of durable stainless steel with a sensitivity range of 2.0 to 3.0 ±10% mV/V and a response frequency of 1k Hz, it provides accurate measurements even in harsh conditions, making it a reliable and cost-effective choice for tension and compression measurements in industrial environments.

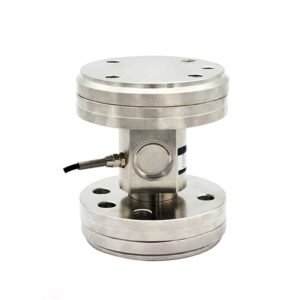

Column load cell with flange type body combined is an excellent performance weight measurement device for 5 ton/10 ton to 30 ton load measurement optional. It is made of high-strength alloy steel, which is robust and ensures stable operation in harsh environments.

Buy a tension and compression column load cell online with optional capacities ranging from 1 kg, 5 kg, 10 kg, 20 kg, 50 kg, 100 kg up to 2 tons. This miniature column-type load cell accurately measures both tensile and compressive forces, ideal for use in testing machines, industrial automation, process control, and weighing systems.

Inexpensive digital load cell for sale, available in several measurement ranges 0-350kg. The load cell can use two output methods to choose from RS485, RS232, with accurate ±0.05%, 150% F.S safety overload. Digital temperature compensation, intelligent creep compensation to maintain stability. Mainly used in intelligent shelves, intelligent gravity cabinets, garbage collection and other occasions.

This parallel beam load cell with single point mounting, has optional capacities 4kg, 8kg, 10kg, 15kg, 20kg, and 30kg. The beam load cell belongs to the C3 accuracy class, offering high precision with a comprehensive accuracy of ±0.02% F.S. It adopts with a recommended excitation voltage of 5~12VDC and has a safe load limit of 150% F.S. High quality aluminum alloy, small range, high measurement accuracy, can be used in packaging machines and other occasions.

Subminiature load cell is a button type load cell with a diameter only 8mm. It is made of stainless steel, with protection class IP66, Φ2*2m cable. Subminiature load cell can be used for keyboard button hand-feeling test, force tester, automated assembly of new energy products and automotive products. It can be customized for the high-temperature working condition such as injection moulding, extrusion and other manufacturing processes.

Button load cell is a compression load cell with a diameter 10mm. It has capacity range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Button load cell can be used for 3C product testing, medical testing, automated equipment testing, etc. It can also be customized for the high-temperature working condition.

Compression load cell has a capacity range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. It has a button type structure, miniature diameter 13mm and height 7mm, cable Φ2*2m. Compression load cell can be used in pressure testers, automotive installation, automated assembly line, robotics, etc.

Small load cell is a button type load cell for compression measurement. It has a capacity range from 5kg to 5 ton, diameter 20mm-37.7mm and height 12mm-18mm, cable Φ3*2m. Button load cell can be used in places where space is limited, such as button hand-feeling tester, mobile phone screen/fingerprint button force detection system, robot grasping force detection system.

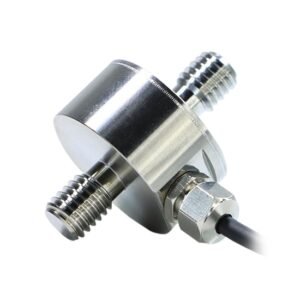

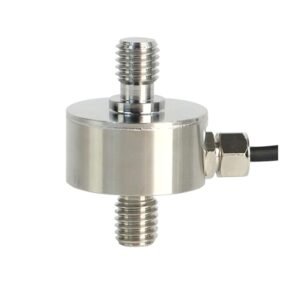

Tension and compression load cell can bear both tension and pressure, with good anti-eccentric load performance, low height, all sealed structure and complete specifications. Miniature load cell with optional capacity 1 kg/ 100kg/ 200 kg/ 300kg/ 500 kg is suited to use in restricted spaces, such as using in vehicle/test instrument/laminator measurement and control.

Miniature load cell can bear both tension and compression force, with metal-foil strain gauge, all stainless steel, small size, 1.0±0.2mV/V sensitivity. Miniature tension and compression load cell is used for force tester, riveting machine, laminator and welding machine.

Compression load cell is special designed for weight measurement, with compact structure, pouring sealant or welding seal, low height, all stainless steel, good anti-eccentric load performance and corrosion-resistant. Load cell can be applied for platform scale, truck scale, rail weighbridge and automated measurement and control areas.
