- Primary Capacities: 0-0.1Nm to 0-1500Nm
- ±10Vdc Output
- Non-Linearity: <±0.1%/Rated Capacity
- Max Speed: 1900 to 20,000rpm (depending on capacity)
- Specially Designed Couplings
- Optional Speed & Angle Outputs
- Maintenance Free Thanks to its Non-Contact Technology
- Immersion Protected up to 1 metre for 30 mins
- Ideal for Humid and Dusty Environments
- Optimum Performance Delivered – Its Integrated Signal Amplifier Reduces Signal Interference
- Fast and Simple Installation with Specially Designed Couplings
- Capacities: 0-50te up to 0-1000te
- Supplied with Wireless Handheld Display
- Sealed to IP67
- Stainless Steel Construction
- Optional Loading Cap & Mounting Base
- Wireless up to 800m Range with Handheld Display
- Ideal for Hydraulic Press Calibration, Centre of Gravity & Pile Force Measurements
- Immersion protected to 1 metre
- Centre of Gravity Software Available
- ATEX & Calibration Standard Versions Optional
- Capacities: 0-1te to 0-500te
- T24-HS Included
- Environmental Protection: IP65
- Carry Case Included
- Shackles Optional
- Transmission Distances to 700m
- Wireless Handheld Display T24-HS Included
- Water Spray Protection as Standard
- Robust Signal Integrity from Cutting Edge Wireless Technology
- Ideal in Multi-Point Lifting Applications – up to 100 load cells!
- Corrosion Resistant Anodised Aluminium body
- Capacities: 0-12te to 0-1000te
- Includes Wireless Handheld Digital Indicator
- Environmental Protection: IP67
- Shackle & Load Pin Fully Certified
- Optional Load Centralising Bobbin
- Up to 100 Load Cells Simultaneously
- Wireless Signal Transmission – No Cables
- Up to 300 Hours Battery Life
- Transmission Distance up to 600m
- Rugged Construction – High Tensile Carbon Steel
- Optional Load Centralising Bobbin – For Optimum Performance
- IP67 Protection Rating for Submersion up to 1 metre in Water
- Ideal in Multi-Point Lifting Applications – up to 100 load cells!
- Capacities: 0-10Nm to 0-50,000Nm
- Wireless Telemetry Data Output
- Non-Linearity: <±0.25%/Rated Capacity
- Battery-Powered (Rechargeable In-Situ)
- Max Speed: 6500rpm (Balanced to Grade G6,3 as-per ISO 21940-11
- Advanced Cable-Free Wireless Monitoring up to 800m
- Ideal for PC Logging, Analysing and Reporting
- Fast and Simple Installation with Customised Flange Designs
- Load Cell Capacities: 0-5kN up to 0-1000kN
- Load Cell Output: 2mV/V
- High Accuracy Load Cell: <±0.05%/RC
- 800m Wireless Range
- Up To 200 Readings/Second
- Supplied Calibrated & Ready to Use
- DSCC Compression Load Cell + T24-ACMi-SA Industrial Wireless Transmitter
- Fantastic Wireless Transmission Range – Up to 800 metres!
- High-Frequency Response – Ideal for Crash Test Walls
- Load Cell Customisation Available
- Sensor Options Include: Fatigue-Rated Versions, IP67 Rated Versions, IP68 Submersible Versions
- Capacities: 0-50kg up to 0-6,000kg
- Output: 2mV/V
- Environmental Protection: IP67
- Accuracy: <±0.05%/RC
- Simple To Install
- Guaranteed High Performance – With dual bending beam and shear web designs.
- IP67 Immersion Protection as Standard to 1m
- Fully Submersible Versions Available – Ideal for permanent marine and offshore applications.
- Improved Accuracy – Specially designed rod end bearings which reduce extraneous forces.
- Fast and Simple Installation – With standard or customised mounting bases and design fixtures.
Amowell AWD21A Load Cell Weight Sensor 4~20mA RS232 RS485 Output LED Indicator with 0.05%F.S Precision IP65 Protection
| Supply Voltage | 9V-30VDC |
|---|---|
| Comprehensive Precision | ≤0.05%F.S |
| Display | Single-row 5-digit LED highlighting (0.56 inch) |
| Power Consumption | ＜5W |
| Sensor Excitation Voltage | 5VDC±2%,100mA (up to 6 350Ω sensors can be connected) |
| Input Sensitivity | .4-6mV/V |
| Output Rate | 10, 40, 640, 1280 times/second |
| Operation Temperature | -30-60℃ |
| On-off Output | 2 way, 250VAC/3A |
| Accuracy | 1/10000 |
AWD21B Digital Weighing Controller Indicator is suitable for automatic control of various industries, such as ground measure, cement, food packaging, chemical ingredients, etc., special control can be customized.
| Power supply | 110/220v AC |
|---|---|
| Aux. power | 5V/80mA(1~ 4 load cell) |
| Output control | Relay: AC 250V/5A, Resistance load: SSR 24V/30mA |
| Analog output | 4-20mA / 0-10V |
| Signal input | Load cell/4-20mA/0-10V signal etc. |
| Accuracy | 0.2%F.S±2 digits |
| Insulation resistance | ≥100MΩ(DC 500V between terminal and out-shell) |
AWD21E Load Cell Weight Sensor RS232 RS485 Output controller matching debugging software.
| Model | AWD21E |
|---|---|
| Comprehensive Precision | ≤0.002%F.S |
| Supply Voltage | 24VDC |
| Display | Single-row 5-digit LED highlighting (0.56 inch) |
| Output Rate | ≤1280 times/second |
| Operation Temperature | -30-60℃ |
Bellow beam load cell, anti-fatigue, anti-eccentric load, can withstand two working modes of tension and compression.
| Model | AB51C |
|---|---|
| Capacity | 00.1，0.2，0.3，0.5，1，2,3，5，7，10 (kN) |
| Creep | ±0.02%F.S/30min |
| Sensitivity | 2.0mv/v |
| Material | Alloy steel |
| Certificate | RoHS, CE |
AM41L button load cell can measure the tension force, It is made of stainless steel,
| Accuracy | 0.03～0.05%F·S |
|---|---|
| Capacity | 3，5，10，20，30，50，100,150，200，300 (kN) |
| Certificate | RoHS, CE |
| Creep | ±0.03 %F·S/30min |
| Material | Stainless steel |
| Sensitivity | 2.0 mV/V |

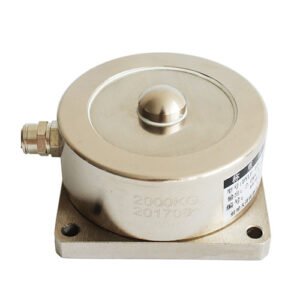

Wide measuring range 20-2000KN. Zemic Brand strain gauge, high precision, sealed and moisture-proof.
| Model | AT53A |
|---|---|
| Accuracy | ±0.05%F.S |
| Capacity | 20，30，50，70，100，150,200，300，500，700，1000,2000 (kN) |
| Creep | ±0.05%F.S/30min |
| Material | Alloy steel |
| Sensitivity | 2.0mv/v |
| Certificate | RoHS, CE |
A full-bridge load cell, four wires, which can be used alone. The width is only 8mm, the design of two holes at both ends, one end is fixed, and the other end is stressed.
| Accuracy | ±0.2%F.S |
|---|---|
| Capacity | 10kg, 40kg |
| Creep | ±0.2%F.S/3min |
| Material | Alloy steel |
| Size | 40*8*3mm |
A full-bridge load cell, four wires, which can be used alone. The width is only 8mm, the design of two holes at both ends, one end is fixed, and the other end is stressed.
| Model | AM22BA |
|---|---|
| Size | 31.8*7.9*2.5mm |
| Capacity | 10kg, 40kg |
| Accuracy | ±0.3%F.S |
| Creep | ±0.2%F.S/3min |
| Material | manganese steel |
A full-bridge load cell, four wires, which can be used alone. The width is only 8mm, the design of two holes at both ends, one end is fixed, and the other end is stressed.
| Model | AM22C |
|---|---|
| Size | 45*19*2.5mm |
| Capacity | 40kg |
| Accuracy | ±0.1%F.S |
| Creep | ±0.05%F.S/3min |
| Material | manganese steel |
