Miniature beam load cell 100g 200g FA507 is made of aluminum alloy based on strain gauge technology. Due to its small size and light weight, this shear beam load cell can be used in limited spaces and light weight weighing instruments. The weighing load cell satisfies the requirements of protection class IP65.
Suitable for electronic scale, counting scale, electronic balance and industrial weighing system
10-100KG High Precision Stainless Steel Shear Beam Load Cell FA508 is a model of our brand FIBOS FA5-Series, Shear Beam Load Cell FA508 can be used to measure load 10kg,20kg,50kg and 100kg capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.0166%F.S., its Repeatability ≤0.018%F.S., its Weight is 0.5kg.
0.22t, 0.55t, 1.1t, 1.76t, 2.2t, 4.4t Or Customized Tension Compression Force Sensor FA509 is a model of Tension Compression Force Sensor, it belongs to our brand FIBOS FA5-Series, it can be used to measure load 0.22t, 0.55t, 1.1t, 1.76t, 2.2t and 4.4t or customized capacity, its Creep(30min) ≤0.0166%F.S. , Non-linearity, Hysteresis and Repeatability all ≤0.17%F.S. or can be customized.
Stainless steel Weight Sensor FA509 is a model of our brand FIBOS FA5-Series, it belongs to Single Point Weight Sensor category, Single Point Weight Sensor FA509 can be used to measure weight ranges from 0.22t up to 4.4t, its Creep(30min) ≤0.0166%F.S., its Non-linearity,Hysteresis and Repeatability all ≤0.17%F.S..
Suitable for packaging scales, hopper scales, various industrial weighing systems, etc.

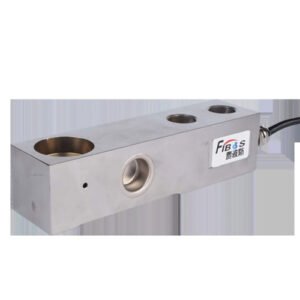

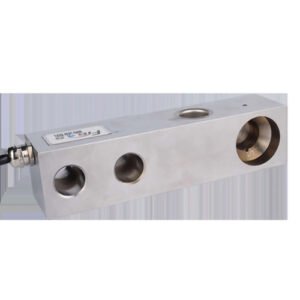

1.94mv/V IP68 Stainless Steel Strain Gauge Weight Sensor Tension Force Sensor FA509B is a model of our brand FIBOS FA5-Series, Strain Gauge Weight Sensor Tension Force Sensor FA509B can be used to measure tension force 0.22t-4.4t, It adopts 6-wire connection mode, which can be used for platform scale, belt scale and hopper scale, etc., and it can be customized specifications. its IP Class is IP68.
0.22t 0.55t 1.1t 1.76t 2.2t 4.4t ≤0.017%F.S. Stainless Steel Shear Beam Load Cell FA509B is a model of our brand FIBOS FA5-Series, Shear Beam Load Cell FA509B can be used to measure weight 0.22t,0.55t,1.1t,1.76t,2.2t and 4.4t, its Rated output range is 1.94±0.1%mV/V, its Creep(30min) ≤0.0166%F.S., its Non-linearity,Hysteresis and Repeatability all ≤0.017%F.S..

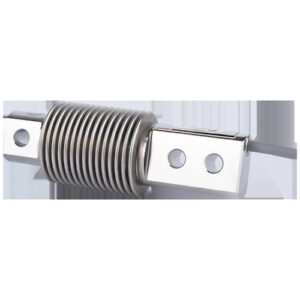

Stainless steel Weight Sensor FA510 is a model of our brand FIBOS FA5-Series, it belongs to Single Point Weight Sensor category, Single Point Weight Sensor FA510 can be used to measure weight ranges from 10kg up to 500kg, its Creep(30min) ≤0.0166%F.S., its Non-linearity,Hysteresis and Repeatability all ≤0.0166%F.S..
Suitable for packaging scales, hopper scales, various industrial weighing systems, etc.
Suitable for packaging scales, hopper scales, various industrial weighing systems, etc.
Suitable for floor scales, automobile test facilities，hopper scales and other weighing devices.
Suitable for floor scales, automobile test facilities，hopper scales and other weighing devices.
Suitable for packaging scales, hopper scales, various industrial weighing systems, etc.

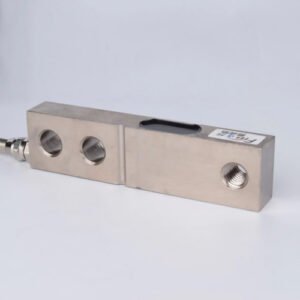

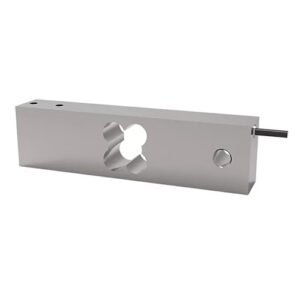

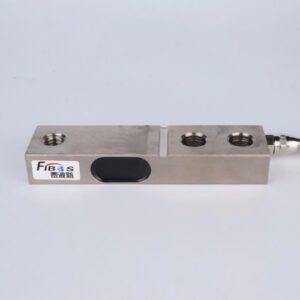

10,20,50,100,200,500kg Or Customized Shear Beam Load Cell FA515 is a model of our brand FIBOS FA5-Series, Shear Beam Load Cell FA515 could be used to measure load 10kg,20kg,50kg,100kg,200kg and 500kg or customized capacity, its Maximum platform size is 500mm*400mm, its Material is Stainless steel or can be customized.
Suitable for food and pharmaceutical industry and other industrial weighing system
